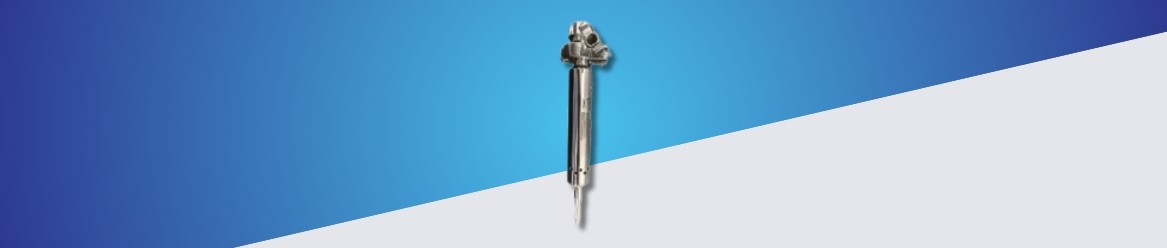

TVSPL High Pressure Diffuser
TVSPL High Pressure Diffuser
For Total Air Particulate of Compressed Air/Gas we can use it in conjunction with a 1CFM, 28.3LPM, 50LPM, 75LPM, or 100 LPM Optical Particle Counters of all makes.
TECHNICAL SPECIFICATIONS
- Material of Construction: SS 316 (Stainless Steel)
- Output Flow/Use: 1 CFM, 28.3 LPM, 50 LPM, 75 LPM, or 100 LPM
- Requirements Suitable For: All Makes Optical/Laser Particle Counters
- Inlet Pressure Required: 25 to 125 PSI (approx for HPD)
- HPD Dimensions (Approx): 140mm x 32mm QD
- HPD for 1 CFM/28.3 LPM OPC: Model No. TVS HPD SS6 001 (TVSPL High Pressure Diffuser)
- HPD for 50 LPM OPC: Model No. TVS HPD SS6 050
- HPD for 75 LPM/100 LPM OPC: Model No. TVS HPD SS6 100
- HPD for 28.3/50/100 LPM OPC: Model No. TVS HPD SS6 002*
